Brief Introduction

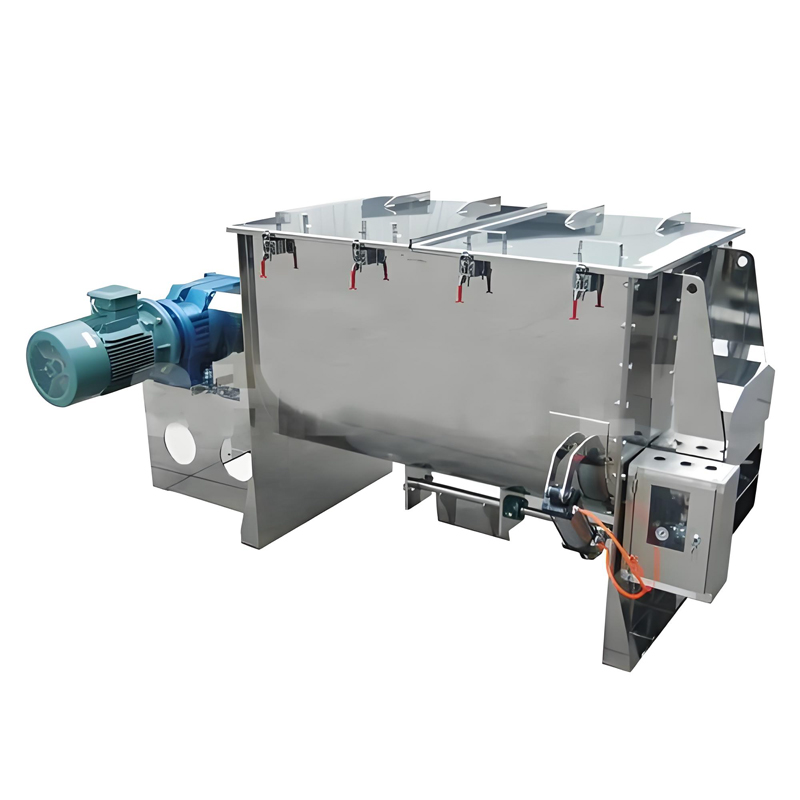

A Horizontal Ribbon Mixer is a high-efficiency batch mixing equipment characterized by its horizontally oriented mixing container ("horizontal") and internal rotating agitator blades. Its core components include a U-shaped or O-shaped horizontal trough and one or more rotating shafts equipped with specifically designed blades (most typically spiral ribbon blades).

During operation, the motor-driven shaft rotates the blades. These precision-engineered blades create a three-dimensional composite movement of materials within the mixing chamber, simultaneously in both radial and axial directions. Specifically, some blades push material from both ends toward the center, while others push material from the center toward the ends, achieving high homogeneity at both macro and micro levels in a short time.

It is particularly suitable for mixing powder with powder and powder with small amounts of liquid, serving as a versatile mixing equipment in industries such as chemicals, food, and pharmaceuticals.

Features

The Horizontal Ribbon Mixer offers significant advantages through its powerful mixing capability and robust construction.

1. Excellent Mixing Efficiency and Homogeneity

High Mixing Uniformity: The unique ribbon blade design forces materials to undergo intense convection, shearing, and diffusion in both radial and axial directions, achieving high mixing homogeneity (coefficient of variation CV can be <5%) in a short time (typically 3-10 minutes).

No Dead Angle Mixing: The rational design of the clearance between the agitator and the shell, combined with the circumferential scraping action, ensures no residual dead spots in the mixing chamber, providing stable and reliable results for every batch.

Wide Processing Range: Capable of handling various materials from low to high density, and from superfine powders to slightly adhesive granules, demonstrating strong adaptability.

2. Outstanding Discharge Performance and Work Efficiency

Rapid and Thorough Discharge: The reverse rotation of the mixing blades or the special discharge door design (e.g., full-open butterfly valve) enables rapid and complete discharge of materials within tens of seconds, significantly shortening the production cycle.

Large Batch Capacity: The horizontal design allows for a large single loading capacity (loading factor typically 0.4-0.7), making it very suitable for medium to large batch production needs.

3. Sturdy Durability and Low Maintenance Costs

Heavy-Duty Structure: The equipment features a robust construction with bearings and seals designed for good load-bearing and dust-proof capabilities, capable of withstanding heavy-duty starts and long-term stable operation, resulting in low failure rates and long service life.

Easy Maintenance: Most models feature a cantilever or double-support shaft structure for easy disassembly and maintenance. Fewer components contact the material, correspondingly reducing maintenance points.

4. Excellent Process Adaptability and Customizability

Easy Integration of Multiple Processes: The mixing trough can be easily equipped with a jacket for heating or cooling. Multiple openings can be added on the top for easy liquid addition, spray system setup, or connection to a vacuum for vacuum drying, enabling integrated "mixing-drying" operations.

Sanitary Design: Can be entirely constructed from stainless steel with electropolished or mirror-finished internal surfaces compliant with GMP requirements. Equipped with a CIP (Clean-in-Place) system to meet the stringent hygiene standards of the food and pharmaceutical industries.

5. Operational Safety and Environmental Protection

Enclosed Operation: The entire mixing process can be conducted under fully enclosed conditions, preventing dust dispersion and external contamination, protecting both the environment and operator health.

Safety Interlocks: Can be equipped with safety interlock devices to prevent the door from opening during operation and the machine from starting when the door is open, eliminating the risk of misuse.

Application Scenarios

The Horizontal Ribbon Mixer is a workhorse equipment in industries requiring efficient and uniform mixing:

Chemical Industry: Mixing of pesticides, fertilizers, dyes, pigments, plastic masterbatches, and detergent raw materials.

Food Industry: Mixing of flour, seasonings, health products, pet food, and food additives.

Pharmaceutical Industry: Mixing of active pharmaceutical ingredients (APIs) and excipients (requires GMP compliance).

Building Materials Industry: Uniform mixing of dry mortar, insulation materials, refractory materials, and ceramic pigments.
